The AbstractGraphicsObject class is the root of a class hierarchy of objects that contain independen game logic and are visible in the game. More...

#include <abstractgraphicsobject.h>

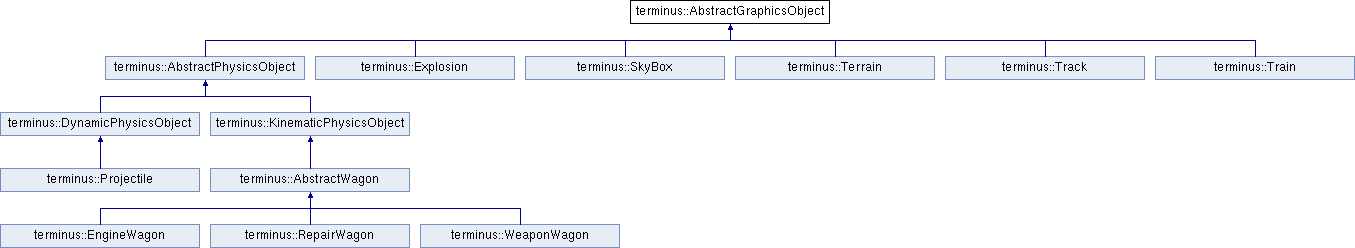

Inheritance diagram for terminus::AbstractGraphicsObject:

Public Member Functions
	AbstractGraphicsObject (World &world)

virtual	~AbstractGraphicsObject ()

virtual void	update () final
	update object hierarchy beginning at this object More...

virtual void	render (QOpenGLFunctions &gl) final
	render object hierarchy beginning at this object More...

virtual void	bindCamera (Camera *camera)
	binds a camera to track this object More...

virtual void	unbindCamera (Camera *camera)
	release a camera so that it wont track this object any longer More...

virtual void	onBindCamera ()
	override this method to perform specific actions once a camera has been bound More...

virtual void	onUnbindCamera ()
	override this method to perform specific actions once a camera has been released More...

virtual void	adjustCamera ()
	override this method to adjust the parameters of a bound camera according to this objects own state More...

virtual void	moveEvent (QVector3D movement)
	override this method to react to move events received by a bound camera More...

virtual void	rotateEvent (QVector2D rotation)
	override this method to react to rotate events received by a bound camera More...

const QVector3D &	minBB () const

const QVector3D &	maxBB () const

QVector3D	worldUp ()

QVector3D	worldFront ()

QVector3D	worldSide ()

QVector3D	position () const

QQuaternion	rotation () const

QVector3D	scale () const

QMatrix4x4	modelMatrix () const

QMatrix4x4	modelMatrixInverted () const

Protected Member Functions
virtual void	localUpdate ()
	override this method to update this objects state More...

virtual void	localRender (QOpenGLFunctions &gl) const
	this method contains the default render code using m_geometry, m_program and m_material More...

virtual void	localRenderSetup (QOpenGLFunctions &gl, Program &program) const
	override this method to customize the rendering process More...

virtual void	localRenderCleanup (QOpenGLFunctions &gl, Program &program) const
	override this method to customize the rendering process More...

virtual bool	localRenderEnabled () const
	override this method to disable or enable rendering conditionally More...

virtual void	doForAllChildren (std::function< void(AbstractGraphicsObject &)> callback)
	override this method to make child objects known More...

void	setPosition (const QVector3D &position)
	sets the position and invalidates the model matrices More...

void	setRotation (const QQuaternion &rotation)
	sets the rotation and invalidates the model matrices More...

void	setScale (const QVector3D &scale)
	sets the scale and invalidates the model matrices More...

void	setScale (float scale)
	sets the scale uniformly on all three axes and invalidates the model matrices More...

QVector3D	worldToModel (const QVector3D &vWorld)

QVector3D	modelToWorld (const QVector3D &vModel)

void	dispose ()
	remove this object from the world and delete it as soon as it is safe to do so More...

Protected Attributes
World &	m_world

bool	m_validState

Camera *	m_camera

std::shared_ptr< std::unique_ptr< Program > >	m_program

std::shared_ptr< std::unique_ptr< Geometry > >	m_geometry

std::shared_ptr< std::unique_ptr< Material > >	m_material

QVector3D	m_position

QQuaternion	m_rotation

QVector3D	m_scale

bool	m_modelMatrixChanged

QMatrix4x4	m_modelMatrix

bool	m_modelMatrixInvertedChanged

QMatrix4x4	m_modelMatrixInverted

Detailed Description

The AbstractGraphicsObject class is the root of a class hierarchy of objects that contain independen game logic and are visible in the game.

Constructor & Destructor Documentation

terminus::AbstractGraphicsObject::AbstractGraphicsObject ( World & world )

terminus::AbstractGraphicsObject::~AbstractGraphicsObject ( )

virtual

Do not delete this destructor, even if it is empty

otherwise std::shared_ptr<IncompleteType> in the header will break

Member Function Documentation

void terminus::AbstractGraphicsObject::adjustCamera ( )

virtual

override this method to adjust the parameters of a bound camera according to this objects own state

Reimplemented in terminus::AbstractWagon.

void terminus::AbstractGraphicsObject::bindCamera ( Camera * camera )

virtual

binds a camera to track this object

Parameters

cam	Once a camera has been bound, it passes move and rotate events on to this object and adjustCamera() will be called from update()

See also: adjustCamera(); moveEvent(); rotateEvent()

void terminus::AbstractGraphicsObject::dispose ( )

protected

remove this object from the world and delete it as soon as it is safe to do so

See also: World::deleteObject()

void terminus::AbstractGraphicsObject::doForAllChildren ( std::function< void(AbstractGraphicsObject &)> callback )

protectedvirtual

override this method to make child objects known

Parameters

callback callback must be called once for every child object

Reimplemented in terminus::Train, and terminus::Terrain.

void terminus::AbstractGraphicsObject::localRender ( QOpenGLFunctions & gl ) const

protectedvirtual

this method contains the default render code using m_geometry, m_program and m_material

Parameters

gl	localRenderSetup() and localRenderCleanup are called from here and are the preferred way to customize the rendering process over overriding this method entirely

Reimplemented in terminus::Terrain.

void terminus::AbstractGraphicsObject::localRenderCleanup	(	QOpenGLFunctions &	gl,
		Program &	program
	)		const

protectedvirtual

override this method to customize the rendering process

Parameters

gl
program	- still bound

Here is the right place to clean up rendering states set in localRenderSetup().

Reimplemented in terminus::Explosion, terminus::Terrain, and terminus::SkyBox.

bool terminus::AbstractGraphicsObject::localRenderEnabled ( ) const

protectedvirtual

override this method to disable or enable rendering conditionally

Returns: true if localRender() shall be called

Reimplemented in terminus::Train, and terminus::Track.

void terminus::AbstractGraphicsObject::localRenderSetup	(	QOpenGLFunctions &	gl,
		Program &	program
	)		const

protectedvirtual

override this method to customize the rendering process

Parameters

gl
program	- already bound

Here is the right place to set additional uniforms and to bind textures &c.

Reimplemented in terminus::Explosion, terminus::Terrain, and terminus::SkyBox.

void terminus::AbstractGraphicsObject::localUpdate ( )

protectedvirtual

override this method to update this objects state

Reimplemented in terminus::Train, terminus::AbstractWagon, terminus::Explosion, terminus::Projectile, terminus::EngineWagon, terminus::KinematicPhysicsObject, terminus::RepairWagon, terminus::WeaponWagon, and terminus::DynamicPhysicsObject.

const QVector3D & terminus::AbstractGraphicsObject::maxBB ( ) const

Returns: the maximum vector of this objects AABB given that it has a an associated Geometry instance

const QVector3D & terminus::AbstractGraphicsObject::minBB ( ) const

Returns: the minimum vector of this objects AABB given that it has a an associated Geometry instance

QMatrix4x4 terminus::AbstractGraphicsObject::modelMatrix ( ) const

Returns: this objects model matrix

If necessary, the matrix is recalculated from the position, rotation and scaling information

QMatrix4x4 terminus::AbstractGraphicsObject::modelMatrixInverted ( ) const

Returns: this objects inverted model matrix

If necessary, the matrix is recalculated from the model matrix

QVector3D terminus::AbstractGraphicsObject::modelToWorld ( const QVector3D & vModel )

protected

Parameters

vModel

Returns: the world space position corresponding to vModel in model space

See also: modelMatrix()

void terminus::AbstractGraphicsObject::moveEvent ( QVector3D movement )

virtual

override this method to react to move events received by a bound camera

Parameters

movement

void terminus::AbstractGraphicsObject::onBindCamera ( )

virtual

override this method to perform specific actions once a camera has been bound

Reimplemented in terminus::AbstractWagon.

void terminus::AbstractGraphicsObject::onUnbindCamera ( )

virtual

override this method to perform specific actions once a camera has been released

QVector3D terminus::AbstractGraphicsObject::position ( ) const

Returns: the position vector that was used to construct the model matrix

void terminus::AbstractGraphicsObject::render ( QOpenGLFunctions & gl )

finalvirtual

render object hierarchy beginning at this object

Parameters

gl	This method is not meant to be overridden as it contains logic to update child objects.

See also: AbstractGraphicsObject::localRender

void terminus::AbstractGraphicsObject::rotateEvent ( QVector2D rotation )

virtual

override this method to react to rotate events received by a bound camera

Parameters

rotation

Reimplemented in terminus::AbstractWagon.

QQuaternion terminus::AbstractGraphicsObject::rotation ( ) const

Returns: the quaternion that was used to construct the model matrix

QVector3D terminus::AbstractGraphicsObject::scale ( ) const

Returns: the scaling vector that was used to construct the model matrix

void terminus::AbstractGraphicsObject::setPosition ( const QVector3D & position )

protected

sets the position and invalidates the model matrices

Parameters

position

void terminus::AbstractGraphicsObject::setRotation ( const QQuaternion & rotation )

protected

sets the rotation and invalidates the model matrices

Parameters

rotation

void terminus::AbstractGraphicsObject::setScale ( const QVector3D & scale )

protected

sets the scale and invalidates the model matrices

Parameters

scale

void terminus::AbstractGraphicsObject::setScale ( float scale )

protected

sets the scale uniformly on all three axes and invalidates the model matrices

Parameters

scale

void terminus::AbstractGraphicsObject::unbindCamera ( Camera * camera )

virtual

release a camera so that it wont track this object any longer

See also: bindCamera()

void terminus::AbstractGraphicsObject::update ( )

finalvirtual

update object hierarchy beginning at this object

This method is not meant to be overridden as it contains logic to update child objects.

See also: AbstractGraphicsObject::localUpdate

QVector3D terminus::AbstractGraphicsObject::worldFront ( )

Returns: the front-vector of the model coordinate system transformed to world space

QVector3D terminus::AbstractGraphicsObject::worldSide ( )

Returns: the side-vector of the model coordinate system transformed to world space

QVector3D terminus::AbstractGraphicsObject::worldToModel ( const QVector3D & vWorld )

protected

Parameters

vWorld

Returns: the model space position corresponding to vWorld in world space

See also: modelMatrixInverted()

QVector3D terminus::AbstractGraphicsObject::worldUp ( )

Returns: the up-vector of the model coordinate system transformed to world space

Member Data Documentation

Camera* terminus::AbstractGraphicsObject::m_camera

protected

std::shared_ptr<std::unique_ptr<Geometry> > terminus::AbstractGraphicsObject::m_geometry

protected

std::shared_ptr<std::unique_ptr<Material> > terminus::AbstractGraphicsObject::m_material

protected

QMatrix4x4 terminus::AbstractGraphicsObject::m_modelMatrix

mutableprotected

bool terminus::AbstractGraphicsObject::m_modelMatrixChanged

mutableprotected

QMatrix4x4 terminus::AbstractGraphicsObject::m_modelMatrixInverted

mutableprotected

bool terminus::AbstractGraphicsObject::m_modelMatrixInvertedChanged

mutableprotected

QVector3D terminus::AbstractGraphicsObject::m_position

protected

std::shared_ptr<std::unique_ptr<Program> > terminus::AbstractGraphicsObject::m_program

protected

QQuaternion terminus::AbstractGraphicsObject::m_rotation

protected

QVector3D terminus::AbstractGraphicsObject::m_scale

protected

bool terminus::AbstractGraphicsObject::m_validState

protected

World& terminus::AbstractGraphicsObject::m_world

protected

The documentation for this class was generated from the following files:

source/world/drawables/abstractgraphicsobject.h
source/world/drawables/abstractgraphicsobject.cpp
